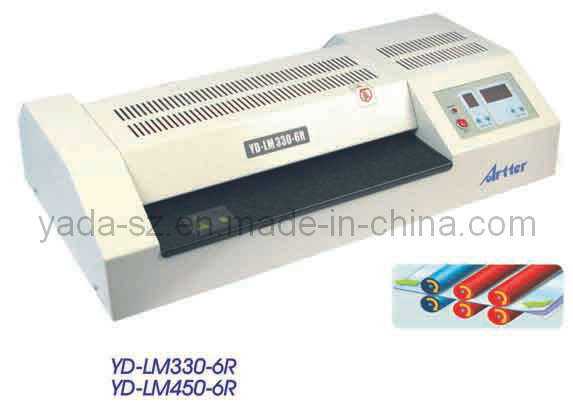

6 Rollers Metal Pouch Laminator (YD-LM330-6R & YD-LM450-6R)

Share to:
  • YD-LM330-6R & YD-LM450-6R
  • Artter
6 Rollers Laminators YD-LM330-6R & YD-LM450-6R (Hot Roller Technology)

--- These models are particularly designed for professional usage in photo shops, copy shops, professional companies, and so on.
These models are suitable for photos, certificates, menus, pictures, documents, printing materials, poster, color transfer, etc.
The total working range is from 320mm to 450mm.

Basic Features:
(1)Adjustable motor speed according to different material;
(2)Only 3 minutes warm up time;
(3)Hot and cold laminating for different need;
(4)Adjustable temperature control for various film thickness and different material;
(5)Digital display system;
(6)No bubble and waviness;
(7)Reverse button removing jammed films;
(8)Metallic construction for durability.

Specifications for Model YD-LM330-6R:
Laminating Speed: 500-1100mm/min
Max. Laminating Width: 330 mm(A3)
Laminating Thickness: ≤ 2mm
Operating Temperature: 51-150 C
Heating Method: HOT ROLL
Control System: 8-Bit
Microprocessor Display System: Digital display
Cooling System: DC fan
Driving Motor: DC Gear Shift Motor
Number Of Rollers: 6(4 for heating)
Power Supple(Optional): AC 110/120/220/240V, 50/60Hz
Power Consumption: 1150W
Dimention: 550x295x135 mm
Net Weight: 17 kgs.

Specifications for Model YD-LM450-6R:
Laminating Speed: 500-1100mm/min
Max. Laminating Width: 450 mm(A3)
Laminating Thickness: ≤ 2mm
Operating Temperature: 51-150 C
Heating Method: HOT ROLL
Control System: 8-Bit
Microprocessor Display System: Digital display
Cooling System: : DC fan
Driving Motor: DC Gear Shift Motor
Number Of Rollers: 6(4 for heating)
Power Supple(Optional): AC 110/120/220/240V, 50/60Hz
Power Consumption: 1550W Dimention: 670x295x135 mm
Weight: 20 kgs.
