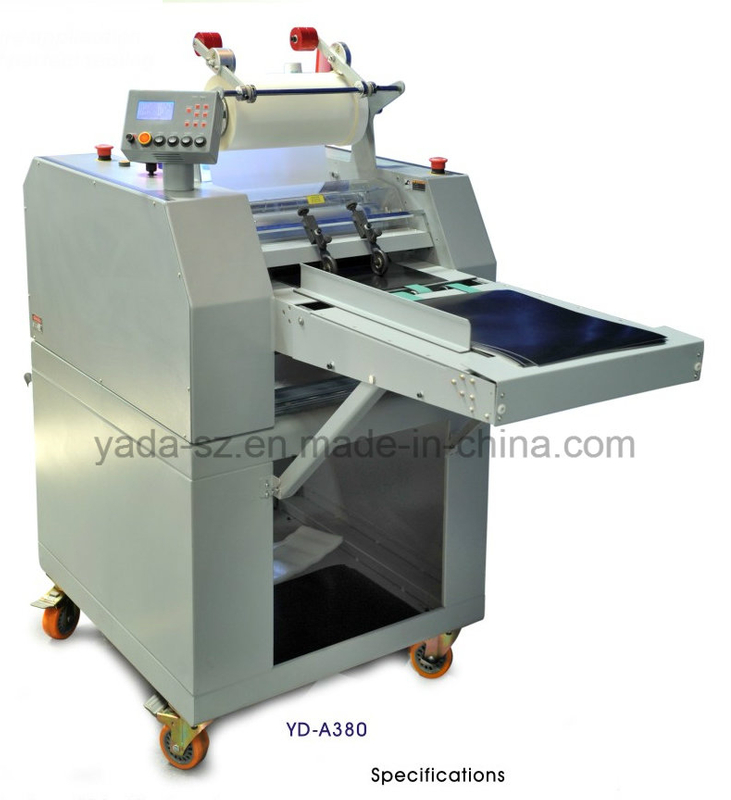

Air Pressured Lamiantor YD-A380

Share to:
  • YD-A380
  • Artter
Fully pneumatic pressure application to main rolls in result of perfect sealing for digital print.

Standard Features
Suitable for bopp/pet films from 25 to 42mic.
Infeed widths min 200 to 380mm
Infeed lengths form 300 to 650mm adjusted via digital control panel
Temp form 80 to 140'C
Paper qualities form caliper 0.15 to ca 0.4mm
Variable process speeds from 1m/min to max 10m/min
Roller pressure to 50kgf, air valve for regulation
Infinitely variable decurling setting
2 anti curling systems - non scratch roller for digital stock and bar for offset printed stock
Fully digital LCD display
Roll carrier to 20 cm diameter
Automatic sheet infeed(hand laydown)
Infeed and outfeed conveyor folds down for storage

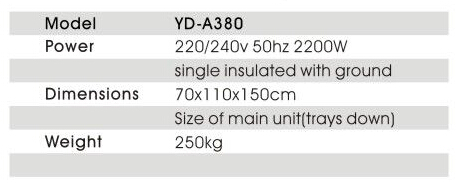

Specifications
a380

Options
Film slitting and perfing kit
Jumbo roll holder kit to 30 cm diameter
Compressor

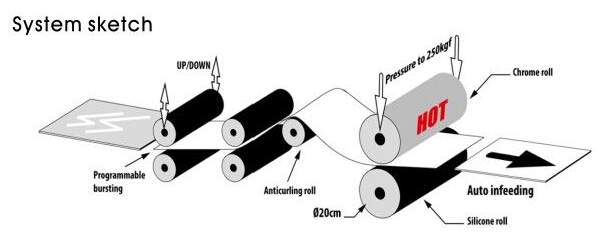

a3801
a3802
