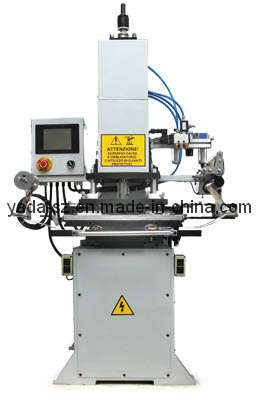

Bonzing and Die-Cutting Machine (YD-468)

Share to:
  • YD-468
  • Artter
Characteristics:
It adapts the German technology-air over hydraulic reinforcement driving system so that we can made two-stroke and three-stock free switching.It is energy-saving and high efficiency.

Imports drive up and down the main use of the buffer system to reduce noise, high-precision equipment to ensure the operation.

It has a versatility of bronzing and die cutting many materials and different types of products.

It can adjust the holding time and pressure of bronzing to achieve many results. It has a wonderful result of bronzing embossment and heavy perssure mark.

Safety device is equipped so it is safe and reliable.

Electrical system is designed according to CE standardm the lates HMI, digital control, easy to operate and can be upgraded.

The foil length and step numbers can be adjusted as you wish, the bronzing foil has a high utility factor.

Technical parameter:
Bronzing area: 450*290mm
Worktable area: 560*390mm
Stroke of the worktable: 280mm
Max. Working height 70mm
Bronzng pressure 1-8T
Temperature control 1-300'C
Air supply pressure 0.8-1.2mpa
Power 3000W
