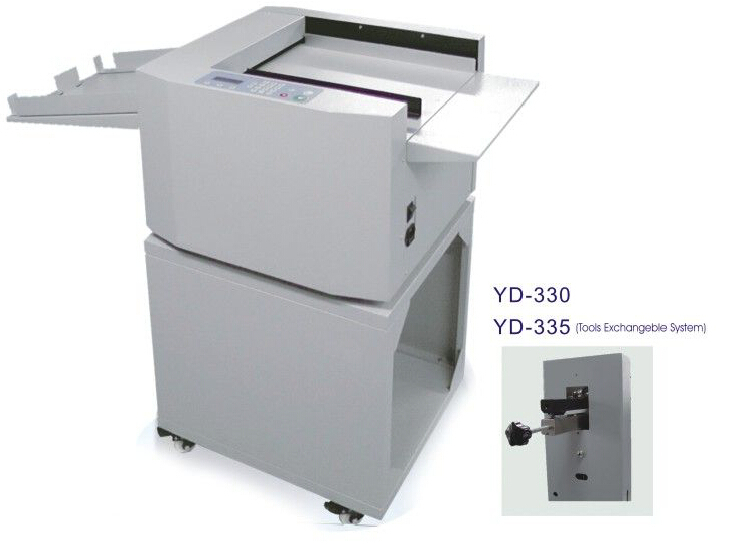

Cross Line Digital Creasing Machine YD-330/YD-335(Tools Exchangeble System)

Share to:
  • YD-330/YD-335(Tools Exchangeble System)
  • Artter
Specification

Paper
Max. Size: 330 x 650mm
Min. Size: 50 x 90mm
Weight: 100g - 400g
Laminated paper: OK
UV coated paper: OK

Crease

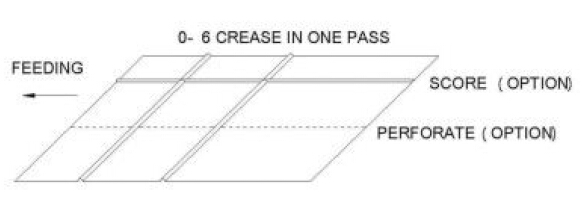

Max creases: 6times/pass
Crease depth adjustment: Up and down
Crease direction: Up
Crease width: 1.2mm (1.0/1.5 mm option)
Crease accuracy: ± 0.2mm 1st line from lead edge: 1mm
Last line from edge: 1mm
Min. Distance of two lines: 0.1mm
Linear score: Option
Skew compensation: Yes

Perforate
Linear perforating blade: Option
Max. Linear parforates: 4lines
Speed A4/one crease: 45 sheets/min
Feed Feeding method: Hand/feed
Hand feed: OK
Infeed register: Right side
Output Output tray: Standard
Output capacity: 50mm

Operation
Operation display: LCD panel
Date input: Manually
Counter: Count up/down
Job program: 30(no namable)
Weight N. W: 42kg G. W: 47kg

AC
Voltage: 110V/220V one phase
Frequency: 60Hz/50Hz

Package
Material: 2cm thick carton
Dimensions: 60*60*58cm

330
3301
