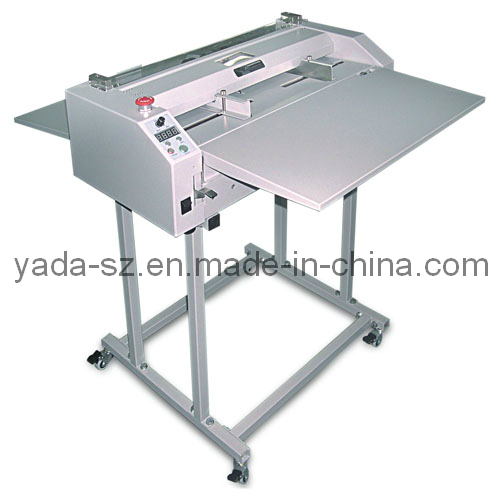

Roller Creaser YD-5600A (Friction Feeder)

Share to:
  • YD-5600A
  • Artter
** Handle most types of substrate from 100~300g
** Super fast shaff extraction in about 15 seconds
** 2 pairs of + - creasing tools for soft cover hinge creasing
** 1 triwidth creas wheels for 3 different crease width
** 1 pair of perforating wheel with 24 TPI (Optional 48 TPI)
** Optional slitting sheels for bleed trim
** Side guide with skew correction
** Easy setting for sheet thickness using paper caliper (5600A)
** Variable tray lifting force to reduce double feed (5600A)
** Tandem feeding system will feed various card stocks (5600A)
** Adjustable separator for different kinds of stock (5600A)
Feeding sys: Tandem friction roller feeder
Speed: 60 -130 sheets/min (A4)
Thickness: 100g-300G/M2
Width: 140-560mm
Tools: Single/ + - crease/perforating/slitting (optional)
Roller gap adjustment: By knob
Pile height: 15mm/160g/5600A
Power supply: 220V/50Hz/1200W/110W
Dimension W*L*H: 78*120*99cm
Gross weight: 58kg
