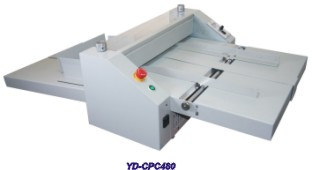

Table-Top Multi-Purpose Creasing Machine (YD-CPC480(manual feeding)/YD-480A)

Share to:
  • YD-CPC480(manual feeding) / YD-480A
  • Artter
Creasing Machine (YD-CPC480(manual feeding)/YD-480A):
Automatic feeder Creasing,Creasing the spine and hinge, Perforating and Trimming
48001
4804801
4802

Specifications:
Max. Width of the sheet: 480mm
Rotational speed: 90-1400/min
Shaft diameter: 36mm Power supply: 220V/110V
Machine weight: 41kg
Dimensions: (W X D X H) 1150 X 620 X 300mm
Normal equipped with: 2 modules of paper guide wheel
Choose the different individual module to use according to the demand;

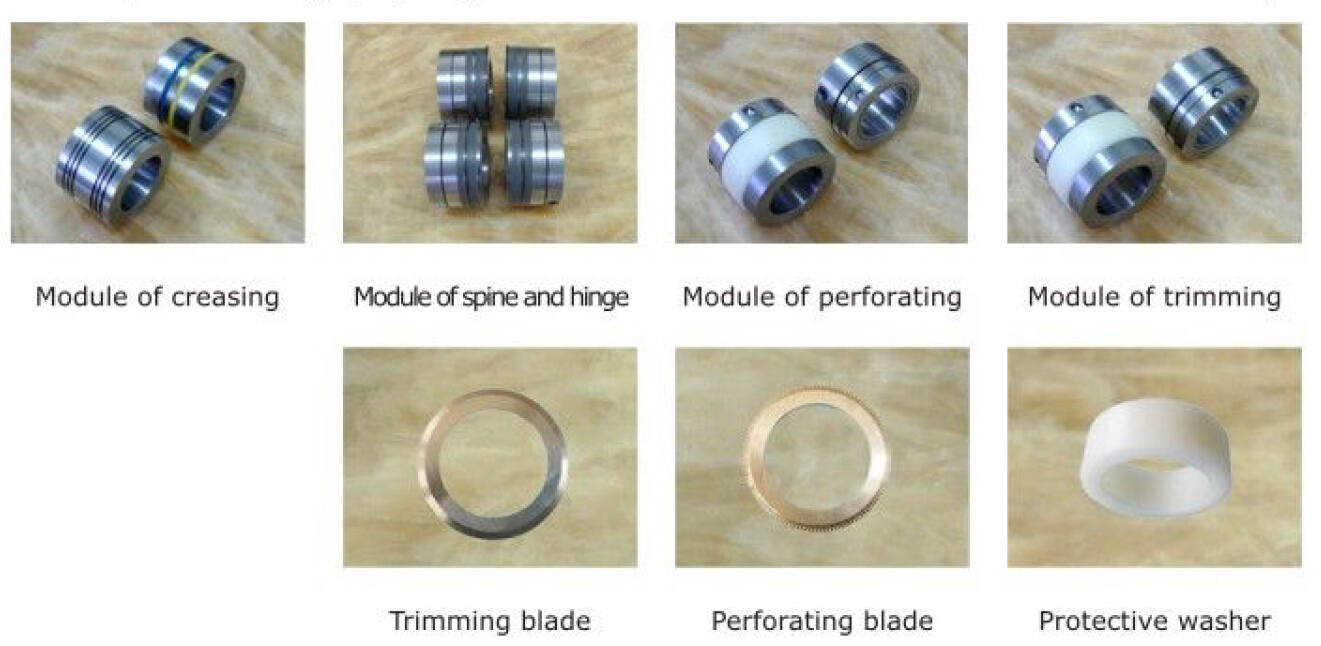

Module of creasing, module of creasing the spine and hinge, blade of trimming, blade of perforatoin, paper guide wheel and also can combine them freely.

480
